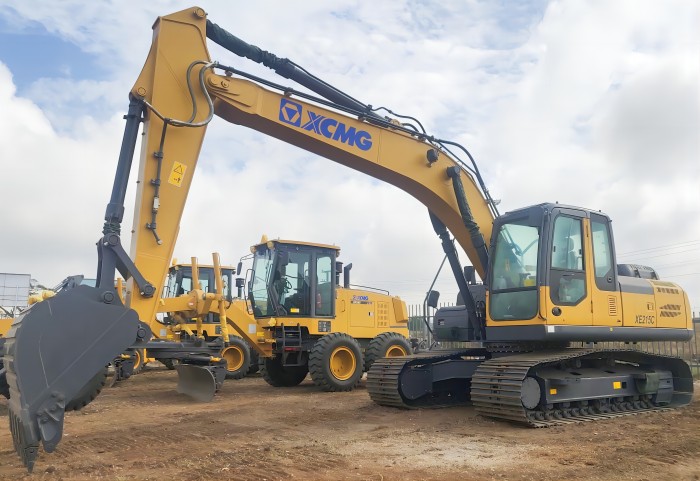

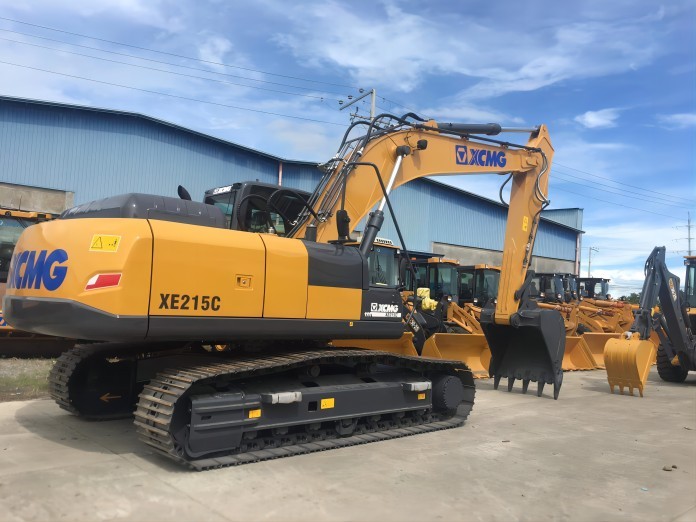

XCMG excavator XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.
|
Engine |
Model |
ISUZU CC-6BG1TRP |
|
Equipped |
Electronic fuel injection |
|
|
Four strokes |
||
|
Water cooling |
||
|
Turbo-charging |
||
|
Air to air intercooler |
||
|
No. of cylinders |
6 |
|
|
Output power |
128.5/2100 kW/rpm |
|
|
Torque/speed |
637/1800 N.m/rpm |
|
|
Displacement |
6.494 L |
|
|
Operation Weight |
21700 kg |
|
|
Bucket Capacity |
0.9—1.0 m ³ |
|
|
Main performance |
Travel speed(H/L) |
5.5/3.3 km/h |
|
Rotating speed |
13.3 r/min |
|
|
Gradeability |
≤35° |
|
|
Ground pressure |
47.2 kPa |
|
|
Bucket digging force |
149 kN |
|
|
Arm digging force |
111 kN |
|
|
Maximum traction |
184 kN |
|
|
Working scope |
Max. digging height |
9620 mm |
|
Max. dumping height |
6780 mm |
|
|
Max. digging depth |
6680 mm |
|
|
Excavation depth of 8 feet level |
6500 mm |
|
|
Max. vertical wall digging depth |
5715 mm |
|
|
Max. digging reach |
9940 mm |
|
|
Min. swing radius |
3530 mm |
|
