Item |

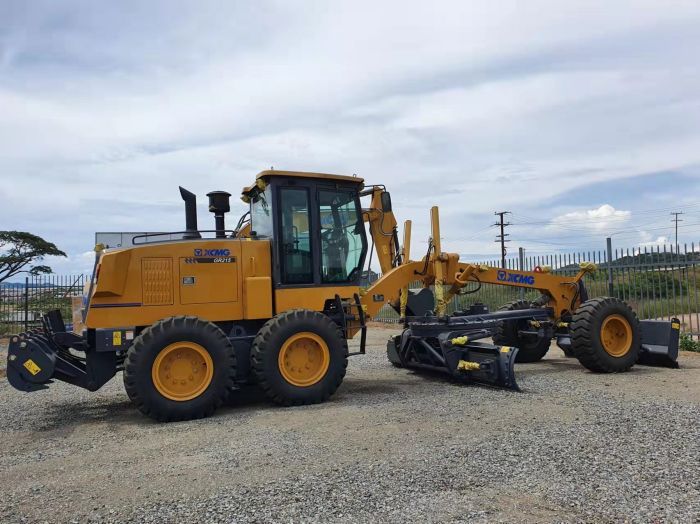

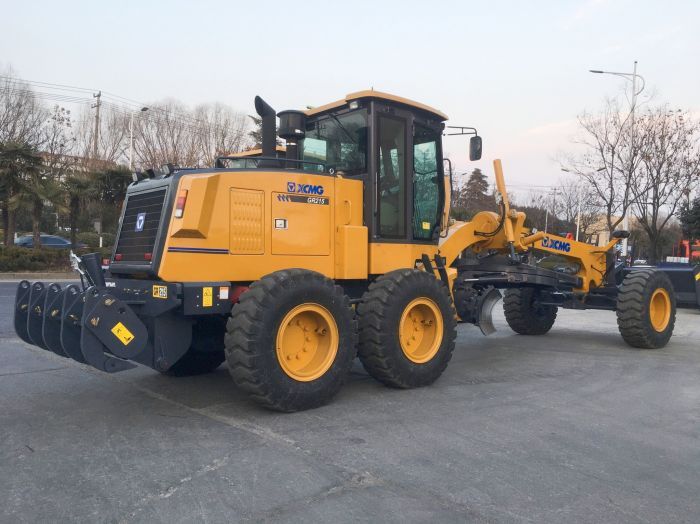

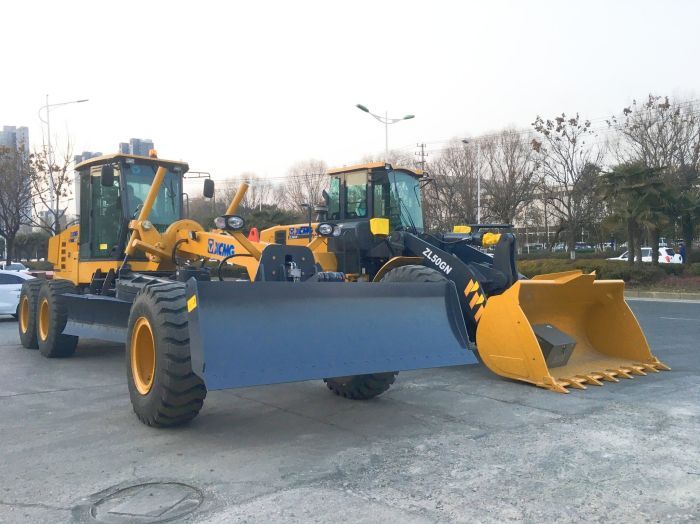

GR215 |
||
|
Basic parameters |
Engine model |
6CTA8.3-C215 |
|
|
Rated power/speed |
160kW/2200rpm |
||
|
Overall dimension (standard) |
8970x2625x3420 |
||
|
Total weight (standard) |
16500 kg |
||
|
Tire specification |
17.5-25 |
||
|
Ground clearance (front axle) |
430mm |
||
|
Space of front and rear axles |
6219 mm |
||
|
Space of middle and rear wheels |
1538 mm |
||
|
Performance parameters |
Forward velocity |
5,8,11,19,23,38km/h |
|
|
Reverse speed |
5,11,23km/h |
||
|
Tractive effort f=0.75 |
87 kN |
||
|
Maximum gradeability |
20% |
||
|
Tire inflation pressure |
260kPa |
||
|
Working system pressure |
16MPa |
||
|
Transmission pressure |
1.3—1.8Mpa |
||
|
Working parameters |
Maximum steering angle of front wheel |
±50° |
|
|
Maximum slant angle of front wheel |
±17° |
||
|
Maximum oscillating angle of front axle |
±15° |
||
|
Maximum oscillating angle of equilibrium box |
forwards15°, Reverse15° |
||
|
Maximum steering angle of frame |
±27° |
||
|
Minimum turning radius |
7.3m |
||
|
Scrape knife |
Maximum lift height |
450mm |
|
|
Maximum cutting depth |
500mm |
||
|
Maximum tilt angle |
90° |
||
|
Cutting angle |
28°—70° |
||
|
Angle of revolution |
360° |
||
|
Length & chord height |
4270x610mm |
||
|
Oil filling amount |
Coolant |
50L |
|
|
Fuel tank |
280L |
||
|
Engine |
24L |
||
|
Transmission |
38L |
||
|
Equilibrium box |
46L |
||
|
Coolant |
28L |
||
|
Hydraulic oil |
110L |
||
